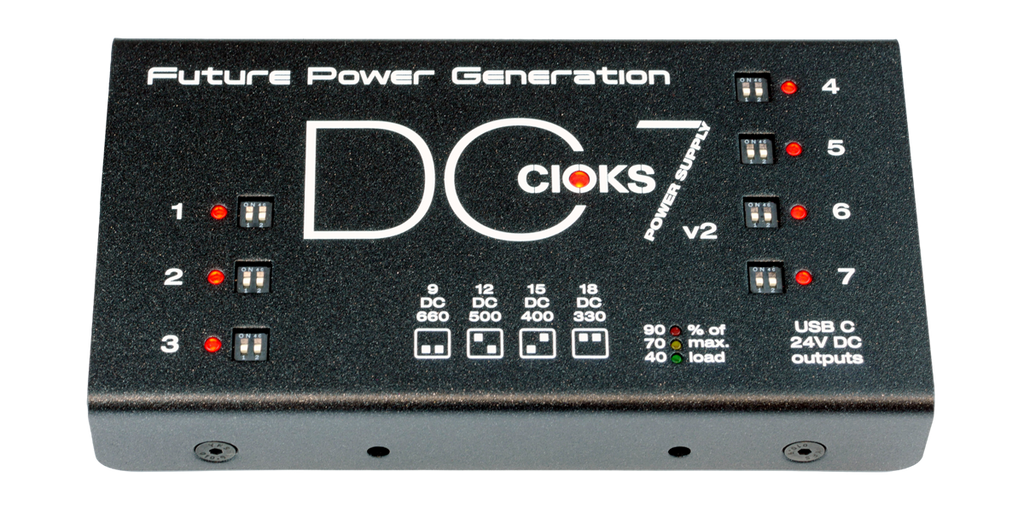

CIOKS DC7 V2 Power Supply 7 Isolated Outputs

DC7 v2 is the latest version of the award-winning DC7 which quickly became the industry standard for powering effects pedals after its 2018 release. It remains the thinnest, most flexible power supply on the market and it has now been updated with a USB-C outlet delivering three times the power the original USB-A outlet did (15W instead of 5W). DC7 v2 has been also optimized to run more efficiently and therefore cooler than the original DC7 did while still providing enough power to kickstart a small sun.

With a one-inch (25.4 mm) profile and a weight of just 1.1 lb (500 g), DC7 v2 uses advanced two-stage switch-mode technology to deliver up to 48W across 9 outlets. The DC7 v2 features 7 isolated DC outlets, each with four selectable voltages and up to 6W with 660 mA at 9V per outlet and a 24V auxiliary output.

This means DC7 v2 can easily power multiple high-current pedals and devices such as the Line6 HX series and the Neural DSP Quad Cortex product range without problems or noise of any kind.

DC7 v2 can be expanded with CIOKS 4, CIOKS 8 and Crux (plus other compatible 24V-powered units) for even more isolated outputs and flexibility. Paired with the updated CIOKS Flex cables, it remains the most versatile, reliable and noise-free pedalboard power solution available.

• Mains input: 90-265V AC universal
• Outlet 1-7: 9V DC / 660mA or 12V DC / 500mA or 15V DC / 400mA or 18V DC / 330mA each
• USB outlet: 5V DC, max 3A
• AUX outlet: 24V DC, max 2A
• Total maximum output power: 48W
• Size: 160 x 88 x 25,4mm excl. rubber feet
• Weight: 500g / 1.1lbs
• Warranty: 5 years worldwide

Included in the box:

• CIOKS DC7 v2 power supply
• Mains power cord
• Standard Flex type 1 – black with 5,5/2,1mm centre negative DC plug x7
• Standard Flex type 2 – red with 5,5/2,1mm centre positive DC plug x1
• Standard Flex type 4 – green with 5,5/2,5mm centre positive DC plug x1
• Standard Flex type 5 – black with tip positive 3,5mm Jack plug x1
• Split Flex type 1 – powers two pedals of a single outlet x1
• 3-way Daisy chain Flex type 1 – powers three pedals of a single outlet x1
• Mounting hardware: 2 screws and a hex-key
• Manual
• Product sheet (drill guide)
• CIOKS sticker sheet
• Flex guide
