DSM & Humboldt Simplifier Bass Master Preamp & Cabsim

• Everything you need to go directly into an FOH (Front of house) or recording mixer
• Versatile pre-amp with three modes (Clean, Comp, Hot), Gain, Level and a four-band EQ
• Parallel signal routing with selectable LPF (500 Hz, Off, 100 Hz)
• Dual FX Loop (with Pre-Fx-Loop and Main-Fx-Loop) and a cabinet simulation with three voicings: 8 x 10", 1 x 15" & 4 x 10" with Type Selection and Resonance controls
• LED: On

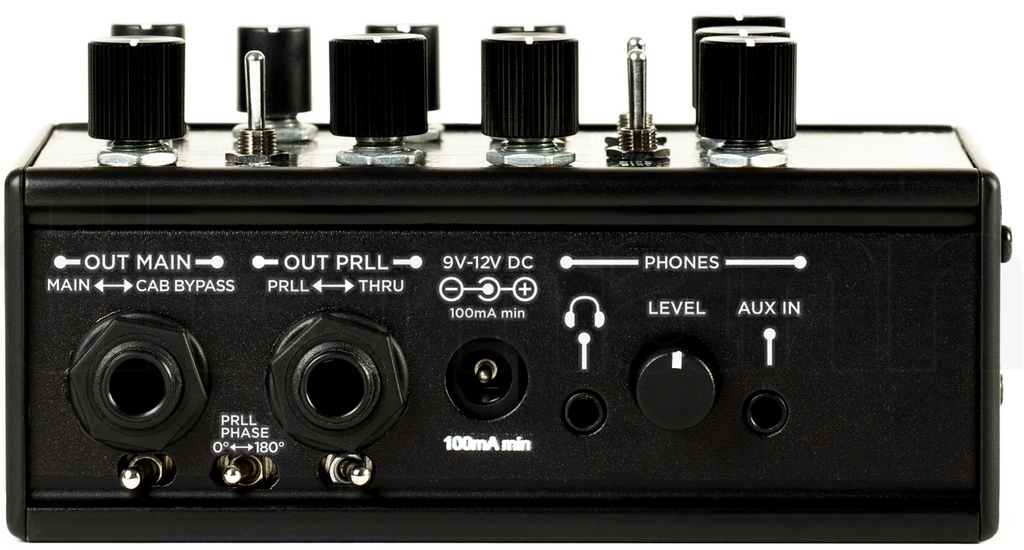

• Input: 6.3 mm jack
• Main output: 6.3 mm jack
• Parallel output: 6.3 mm jack
• DI parallel: XLR
• DI main: XLR
• Pre FX Send & Return: Two 6.3 mm jacks
• Post FX Send & Return: Two 6.3 mm jacks
• Aux input: 3.5 mm stereo jack
• Headphones: 3.5 mm stereo jack
• Power supply connector: Barrel connector 5.5 x 2.1 mm, center negative
• Power consumption: 100 mA
• Power supply with a 9 - 12 V DC power adapter (not included
• Dimensions (W x D x H): 115 x 65 x 55 mm
• Weight: 430 g
• Made in Chile

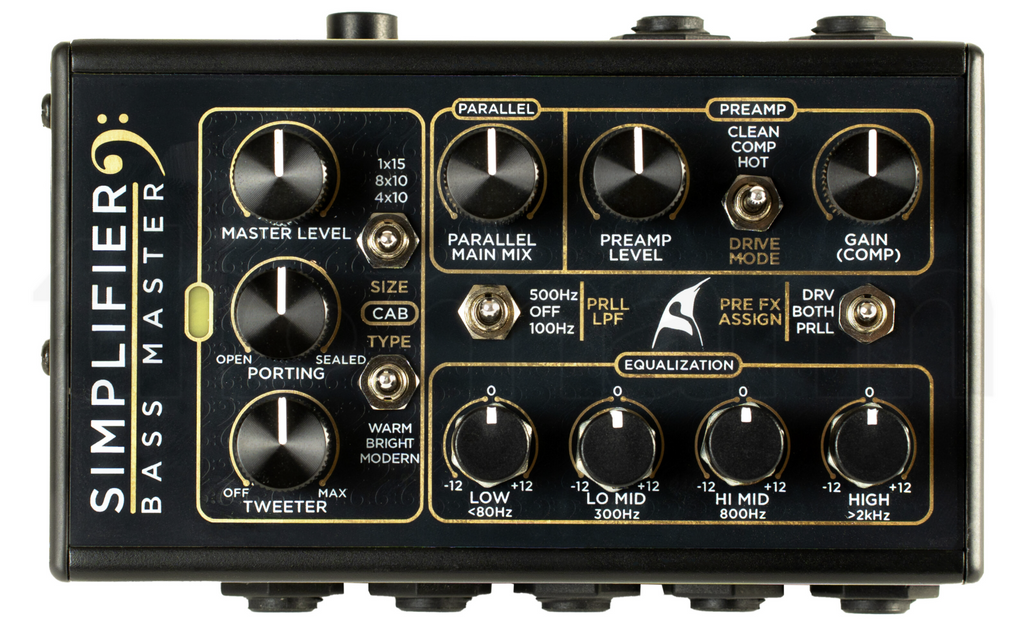

Controls:

• Preamp: Gain (Comp), Preamp Level
• Parallel: Main Mix
• Cab: Master Level, Porting, Tweeter
• Equalization: Low, Low Mid, High Mid
• Phones level

Switches:

• Preamp Drive Mode (Clean, Comp, Hot)
• Parallel LPF: 500 / Off / 100 Hz
• Pre FX Assign (Drv, Both, Parallel)
• Cab size: Four 10" / eight 10" / one 15"
• Speaker Colour: Warm / Bright / Modern
• Out Main (Main / Cab / Bypass)
• Out Parallel (Parallel/Thru)
• Parallel Phase
• Ground lift
